Name: WTB STi23 TCS/Formula DC
Brand: Wheel Shop
SKU: 042091-02-275
Price: 149.99 CAD
Availability: InStock

Wheel Shop, WTB ST i23 TCS / Formula DC-22, Wheel, Rear, 27.5&

Title

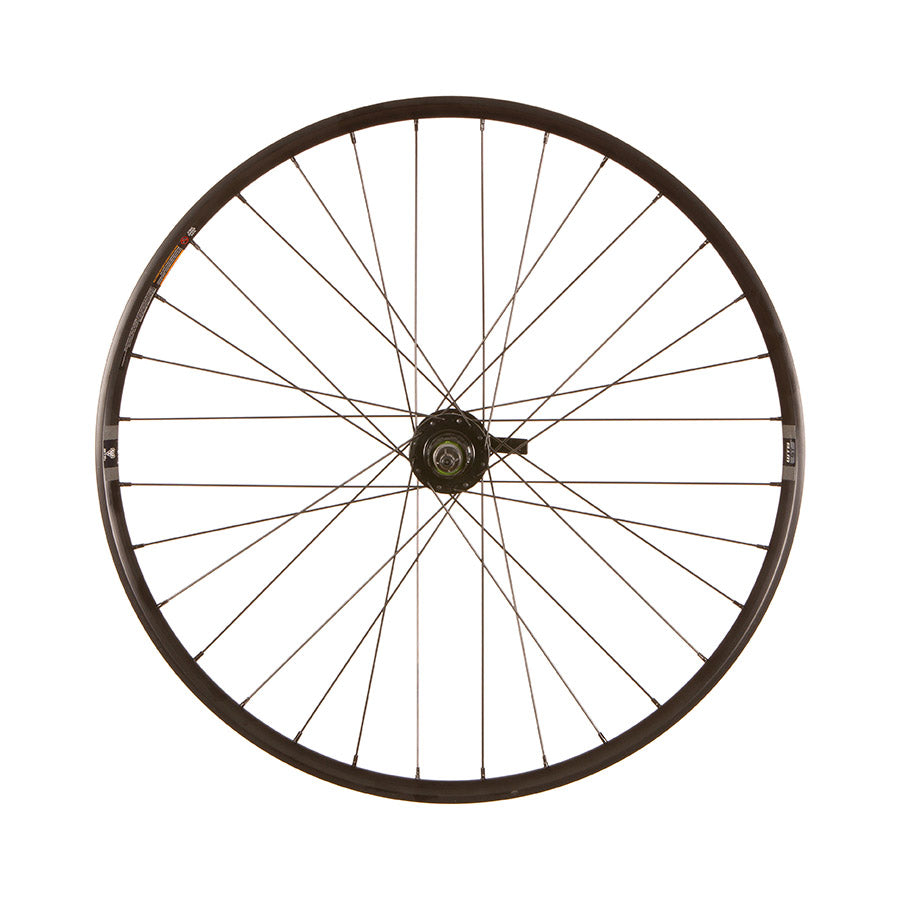

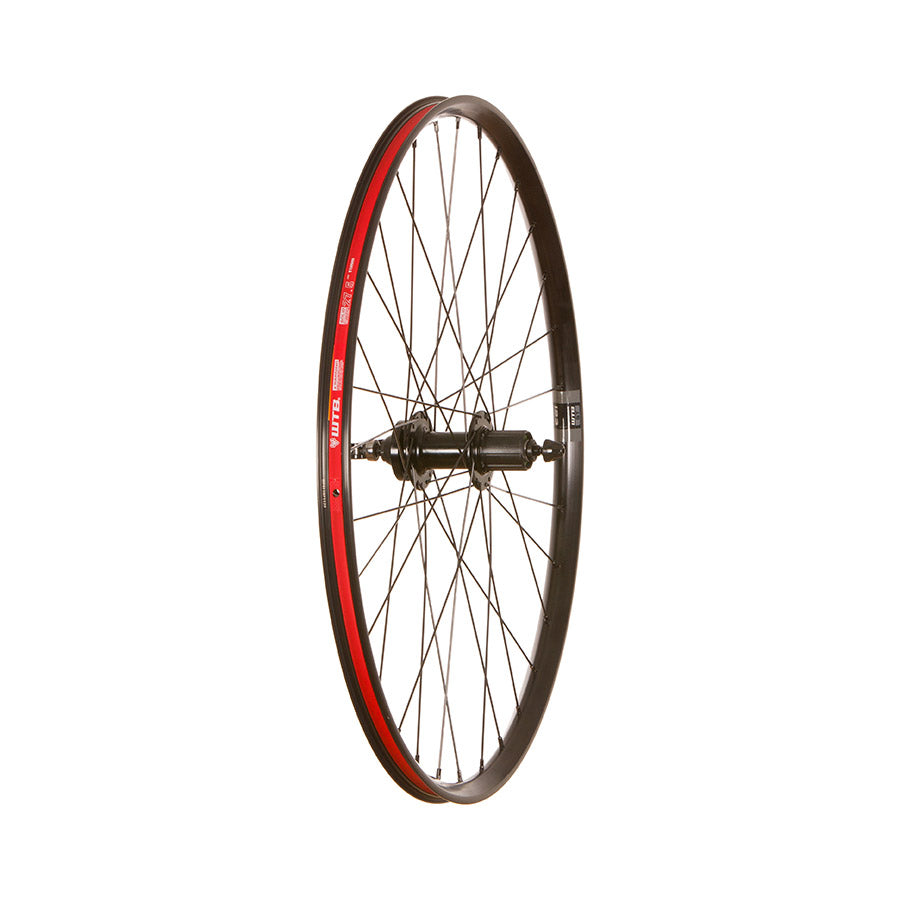

Wheel Shop, WTB ST i23 TCS / Formula DC-22, Wheel, Rear, 27.5'' / 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG

Prix

Shipping on complete bicycles billed separately due to rapidly changing shipping rates

Secure payments

Frais d'expédition calculés lors du passage à la caisse.

[{"id":53395676528864,"title":"Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","option1":"Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","option2":null,"option3":null,"sku":"042091-02-275","requires_shipping":true,"taxable":true,"featured_image":{"id":54849128333536,"product_id":9930688528608,"position":1,"created_at":"2026-07-14T11:24:42-04:00","updated_at":"2026-07-14T11:24:46-04:00","alt":"Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","width":900,"height":900,"src":"\/\/joemammacycles.com\/cdn\/shop\/files\/042091-02_1.jpg?v=1784042686","variant_ids":[53395676528864]},"available":true,"name":"WTB STi23 TCS\/Formula DC - Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","public_title":"Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","options":["Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG"],"price":14999,"weight":1270,"compare_at_price":null,"inventory_quantity":7,"inventory_management":"shopify","inventory_policy":"deny","barcode":"770612356344","featured_media":{"alt":"Wheel Shop, WTB ST i23 TCS \/ Formula DC-22, Wheel, Rear, 27.5'' \/ 584, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG","id":44095866765536,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/joemammacycles.com\/cdn\/shop\/files\/042091-02_1.jpg?v=1784042686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

TCS 2.0 Tubeless system
Solid Strip (included) protects and ensures a smooth surface between the tire and the rim
Easy On-Ramp profile allows for a smooth tire installation and stress- free inflation
Industrial Epoxy reinforced Pinned Joint provides repeatable tubeless consistency
Drilled for Presta valve
32 holes

Front hub:
Formula DC20, M9x100mm
6-bolt disc mount
Adjustable bearings
Quick-Release binder included

Rear hub:
Formula DC22, M10x135mm
HG Freehub compatible with 8 - 10, MTB 11-speed
6-bolt disc mount
Adjustable bearings
Quick-Release binder included

Tubeless Compatible (Valve and Tape not included)

Assembled in North America by experienced wheelbuilders with Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples

Attributes

Axle Type	QR
Freehub Body	Shimano HG
Hub Model	Formula DC-22
Hub Spacing	135mm
Position	Rear
Rim Color	Black
Rim Construction	Double wall, Pinned
Rim Drilling	F: 21, R: 24
Rim Internal Width	23mm
Rim Material	Aluminum
Rim Model	WTB ST i23 TCS
Skewers Included	Yes
Spoke Type	Sapim
Valve	Presta
Wheel-Brake Comp.	Disc IS 6-bolt
Wheel Diameter/ISO	27.5'' / 584
Wheel Tire Type	Clincher
Rim inner width range	22-27.9mm
